| Maximum Sealing Legnth | Continuous Sealing System |
| Seal Width | 10mm |
| Film Thickness (for weld) | 2 x 25 Micron (Min) - 2 x 200 Micron (Max) |
| Seal Temperature (Degrees Centigrade) | 25°C (Min) - 250°C (Max) |
| Footprint | 673mm (L) x 355mm (W) x 502/802mm (H) |
| Machine Height | 91mm (Lowest) - 391mm (Highest) |
| Weight | 45kg |
| Max. Weight on Conveyor Belt | 5kg |
| Conveyor Belt Size | 670mm (L) (with Input Plate) x 112mm (W) |
| Conveyor Operating Speed | Adjustable (0 up to 10m per min) |
| Voltage | 230V, 13amps (Single Phase) |
| Power Consumption (Watts) | 1100W (Max) |
| Operation | Manually Operated, Conveyor (use in a well ventilated area), Digital Control Panel, Type of product: Fluid, Granulate, Powder & Solid, Product Infeed from Right to Left |
| Mounting | Bench Mounted |
| Options | Textured Seal (Diamond Shape), 9 x Pre-Set Seal Settings, Machine Height (electrically adjustable) |

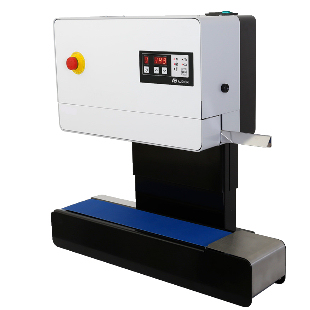

HM D 545-AV
A handy table top continuous sealer. Ready-made-bags are sealed in a standing/vertical position.
The standing position is ideal for powders, liquids or solid products that would spill if sealed lying flat.
The temperature, running speed & cooling (by means of a special fan) are all easily adjustable via an easy-to-use Digital Control Panel.
The HM D 545-AV can be programmed with up to 9 pre-set seal settings for different packaging / bag sizes / materials.
The integrated conveyor has a flow rate up to max 10 meters per minute (depending on the film thickness).
The sealer is electrically adjustable in height with regard to the conveyor belt which enables you to seal bags with different heights, lengths, widths & thicknesses.
The sealing temperature is adjustable up to a maximum of 250 ° C.
*Please contact us for further specifications*
